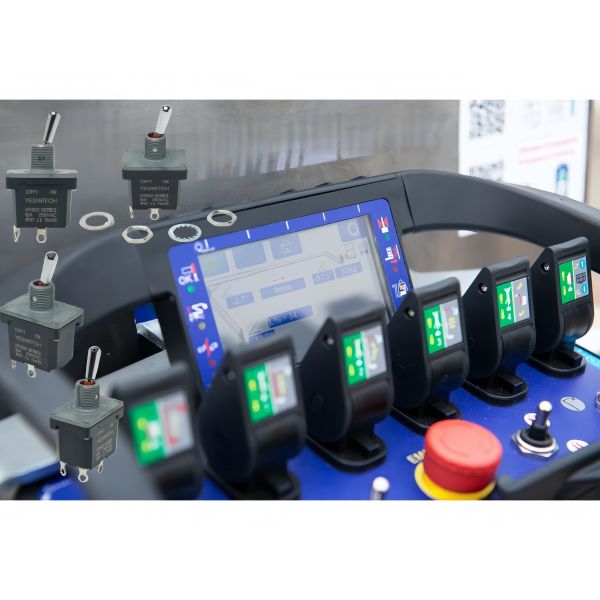

High current 5A long life Industrial toggle switch for control panels
Designed for high-performance control panel applications, our industrial toggle switch delivers reliable operation with a 15A rating at 28V, backed by an impressive 100,000-cycle lifespan—ideal for frequent-use scenarios in automated systems, machinery control, and equipment monitoring setups. Engineered to meet the rigorous demands of control panel environments, this switch combines precision, durability, and consistent performance to ensure seamless operation in critical industrial workflows.
The 5A 28V specification makes it perfectly suited for low-voltage, high-reliability control circuits, such as signal routing, auxiliary function activation, and status switching in control panels for manufacturing lines, robotics, and industrial monitoring systems. Its ability to withstand 100,000 actuation cycles ensures long-term functionality, reducing maintenance needs and downtime in high-frequency operation environments.
Constructed with robust materials, the switch features a reinforced thermoplastic housing that resists impact, heat, and chemical exposure—common in control panel enclosures. The toggle mechanism incorporates silver-plated copper contacts, minimizing resistance and wear to maintain stable conductivity over extended use. This contact design prevents arcing and ensures consistent performance even after repeated actuation.
Ergonomically designed for precise control, the toggle lever offers a clear, tactile feedback for accurate positioning, crucial for operators managing multiple switches in dense control panels.
Equipped with secure PCB terminals, the switch simplifies wiring with reliable connections that resist vibration—a key feature in control panels subject to mechanical stress. With an IP68 ingress protection rating, it shields internal components from dust and debris, maintaining performance in controlled industrial environments.
Whether deployed in factory automation control panels, CNC machine interfaces, or process monitoring systems, it delivers the durability and precision needed for critical control applications, ensuring consistent operation through 100,000 cycles and beyond.
CONTACT RESISTANCE:20mΩ.(Max) INSULATION RESISTANCE:100MΩ MIN/100VDC
MECHANICAL LIFE CYCLE:100.000 CYCLES OPERATING TEMPERATURE:-40 To +85℃
FRONT SEAL:IP68
RESISTIVE LOAD:15A 125/250VAC,15A 28VDC INDUCTIVE LOAD:15A 28VDC
LEVER:STAINLESS STEEL HOUSING:NYLON (UL94V-0)
TERMINAL:COPPER ALLOY WAVE SOLDERING TEMPERATURE:260±5℃
SALT SPRAY TEST:WITHSTANDS 96 TO 120 HOURS OR MORE
DIELECTRIC STRENGTH:1500VAC 1MINUTE
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 3 weeks. We will inform you the delivery time after receiving your payment.
